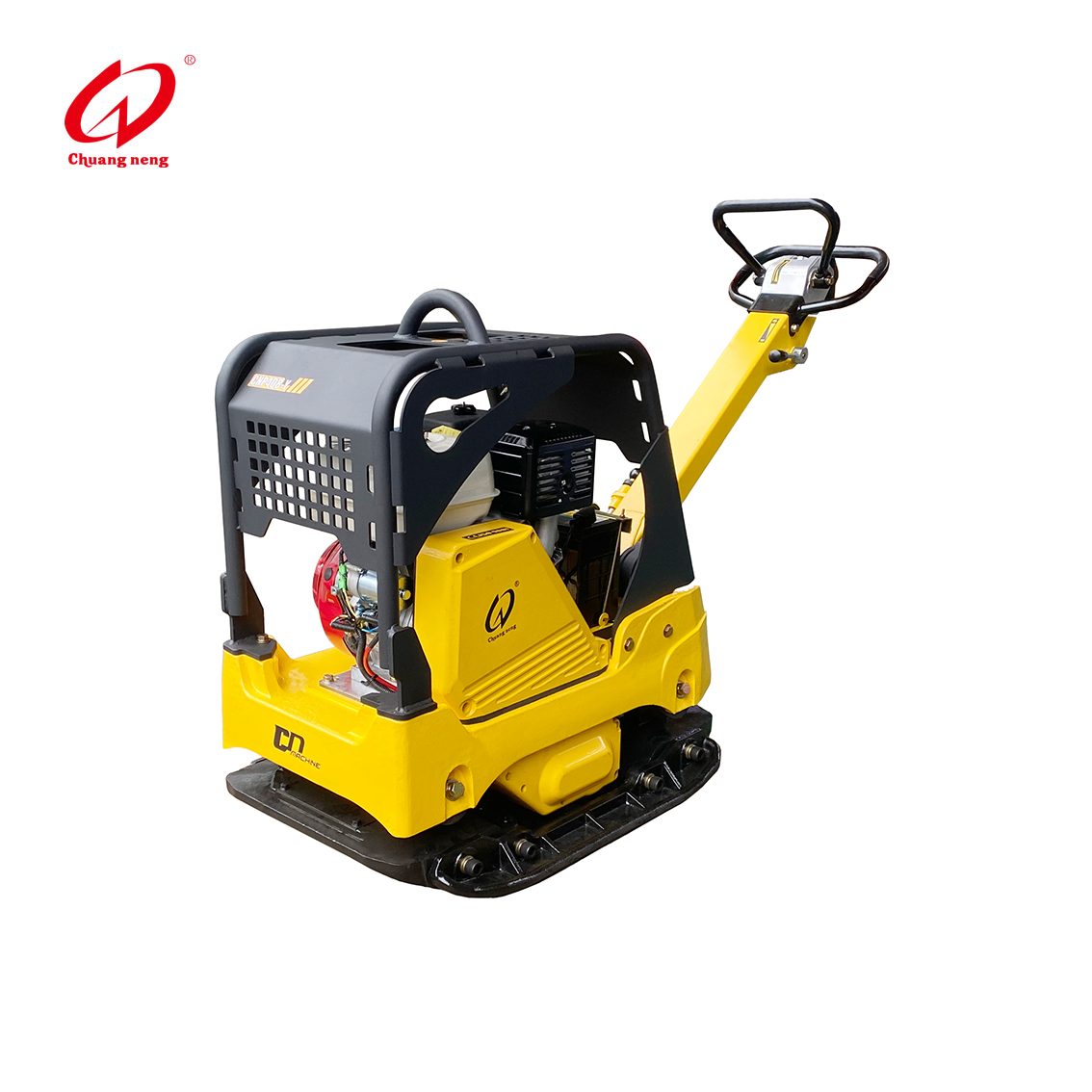

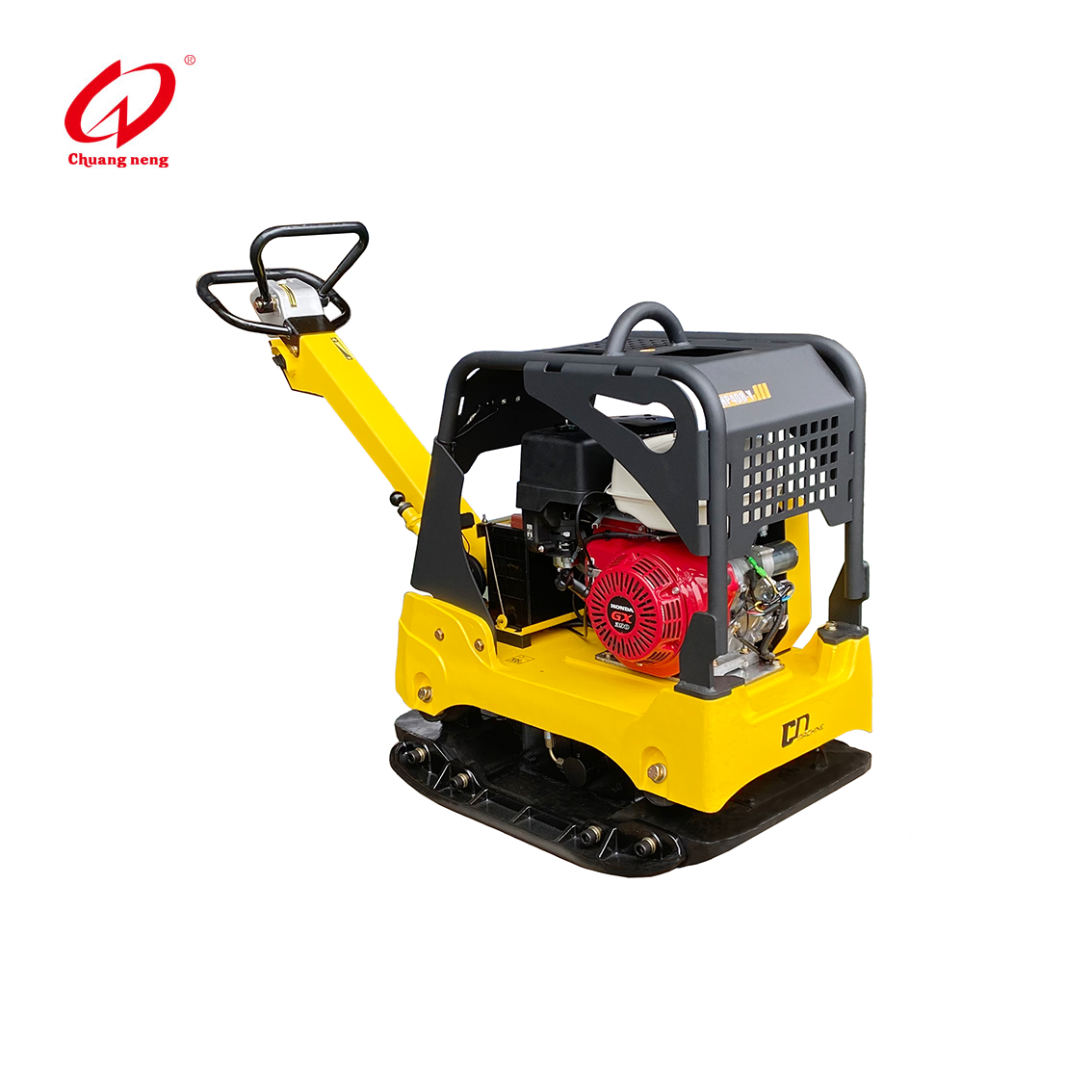

Model | CNP408-Y | ||
Engine Type | Honda GX390 | Chinese Petrol Engine | Chinese Diesel KD186FV |
Power kw(hp) | 8.7(13.0) | 8.2(13.0) | 6.6(13.0) |
Net Weight kg(lbs) | 380(838) | 380(838) | 390(860) |
Frequency vpm | 5000 | ||
Centrifugal Force kN | 55 | ||
Compaction Depth cm(in) | 80(31.5) | ||
Travel Speed m/min(ft/min) | 28(92) | ||
Efficiency m2/hr(ft2/hr) | 1131(12174) | ||
Plate Size mm(in) | 900*500(35.4*19.7) without extension plate 900*650(35.4*25.6) with extension plate) | ||
Package mm | 990*680*1500 | ||
