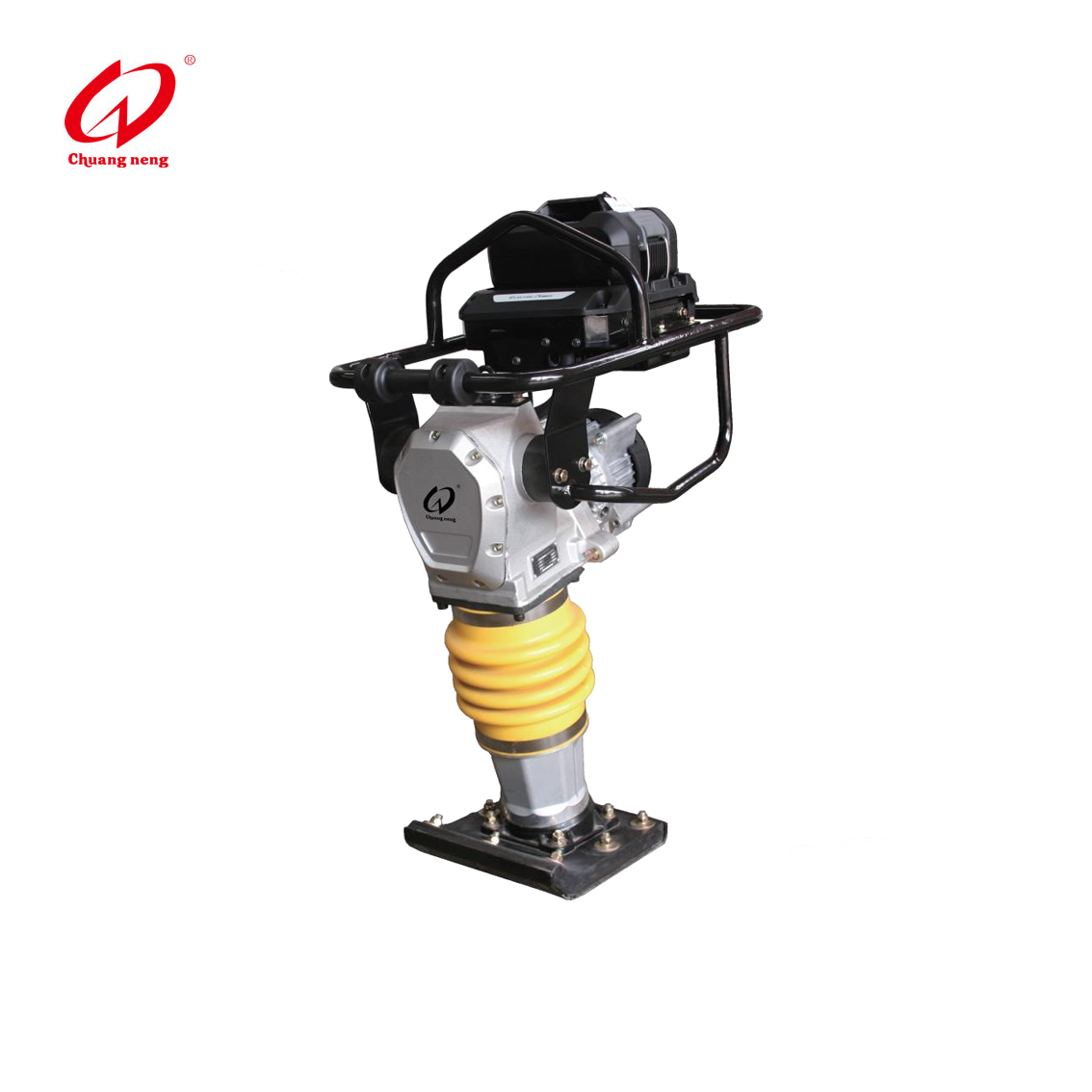

| Model | CNCJ-80HE |
| Net Weight kg(lbs) | 110(203) |
| Working Size mm | 740*430*1050 |
| Size of Foot mm(in) | 340*290(13.4*11.4) |
| Stroke mm(in) | 56(2.2) |
| Percussion Rate blows/min | 675 |
| Impact Force(max.)kN | 15 |
| Package mm | 450*760*1170 |

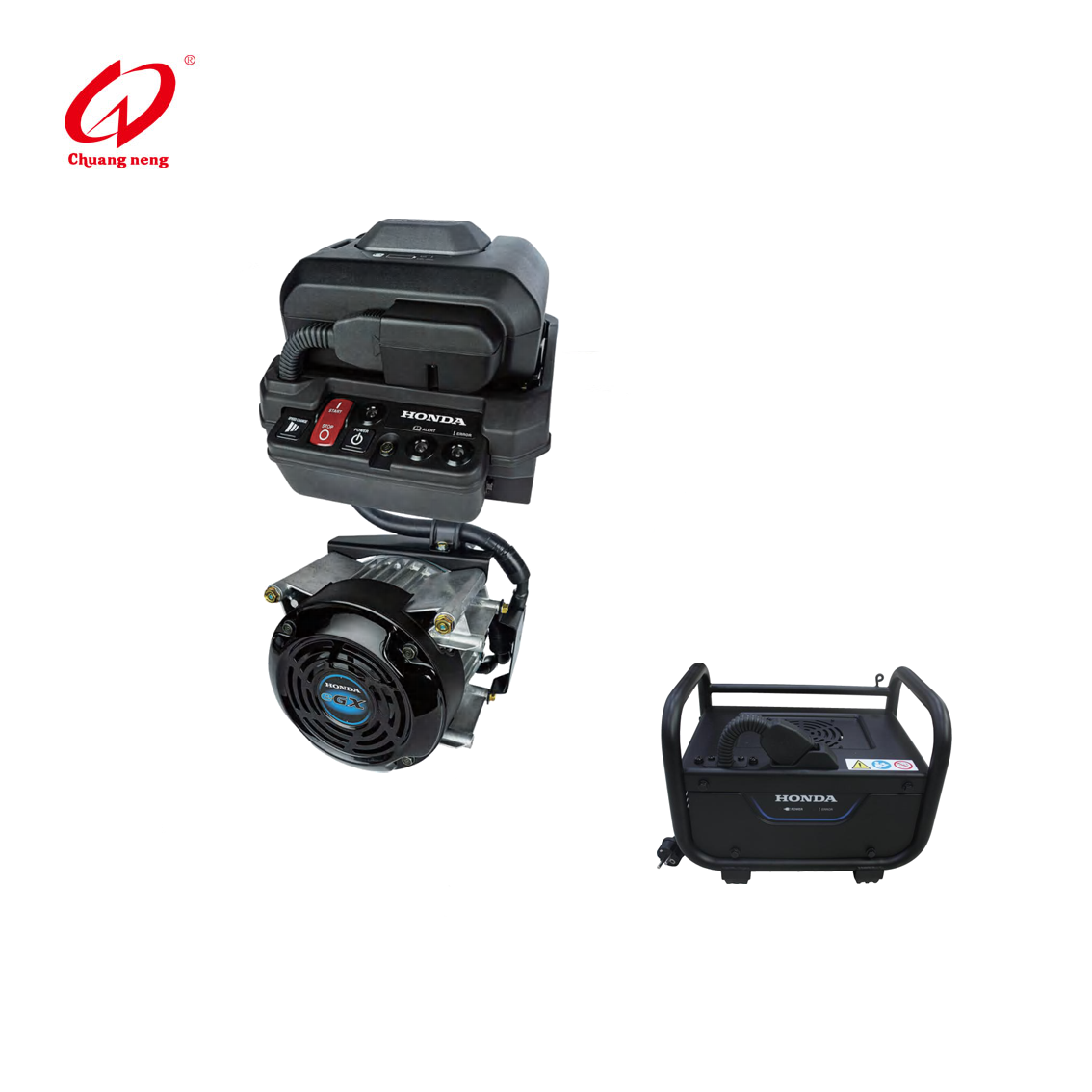

| Motor Type | Permanent magnet DC motor |
| Rated Performance kW | 1.6 |
| Rated Current A | 27 |
| Voltage V | 72 |
| Speed rpm | 3600 |
| Li-ion Battery Pack | DP72104Z |
| Type of Battery | Li-ion |
| Normal Voltage V | 72 |
| Rated Capacity | 10Ah,720Wh |
| Charing Time hr | 2 |
| Running Time Per Charge min | 30 |
| Net Weight kg(lbs) | 6.4(14) |
| Product Size mm | 233*268*150 |
| Package mm | 330*300*200 |
| Charger | CV7285Z |
| Input AC | 100~200V,10A |
| Frequency Hz | 50~60 |
| Output DC | 82.8V,8.5A |
| Net Weight kg(lbs) | 11(24) |
| Gross Weight kg(lbs) | 12.7(28) |
| Product Size mm | 270*270*355 |
| Package mm | 435*320*355 |
