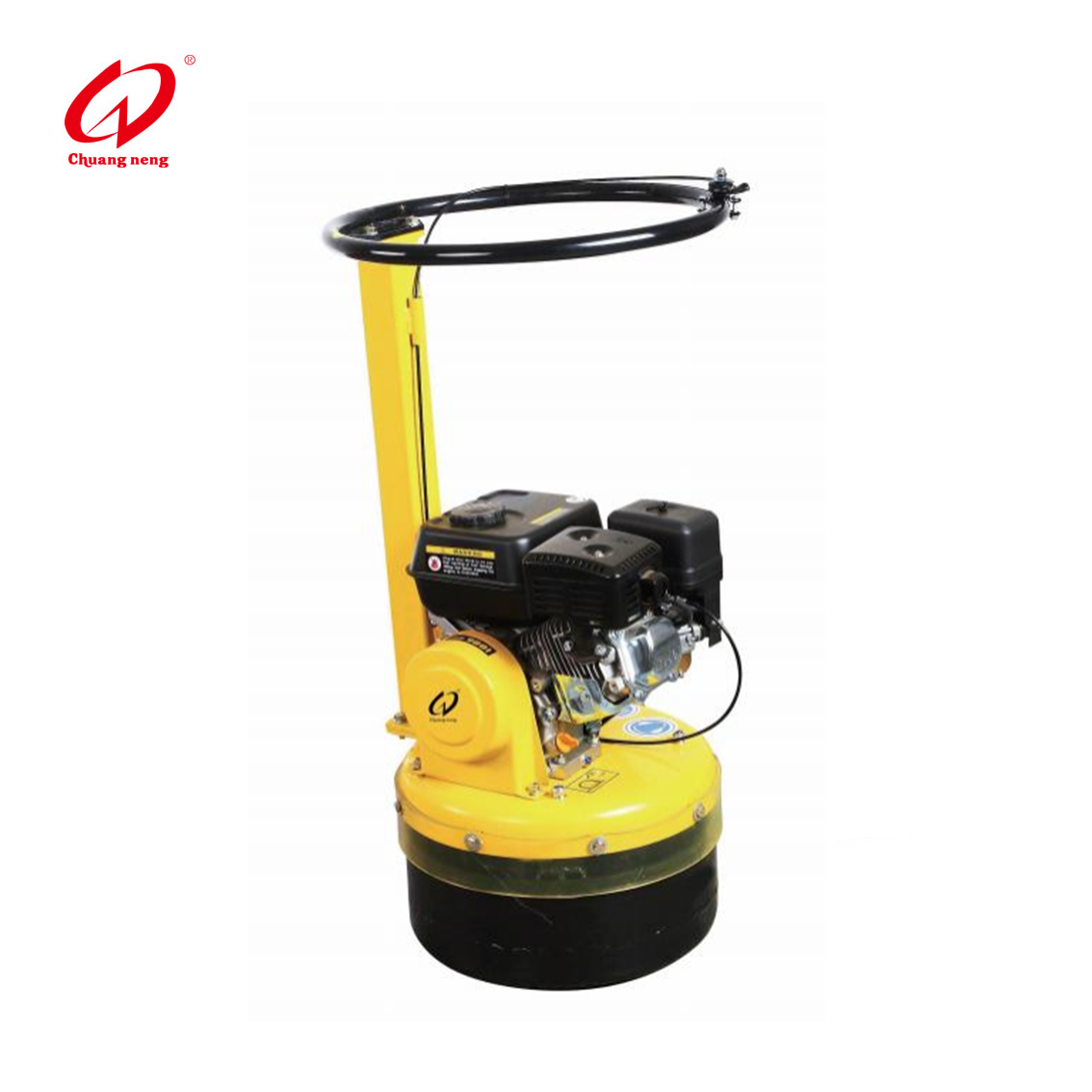

| Model | CNP60R | CNP80R | ||
| Engine Type | Honda GX160 | Chinese Petrol Engine | Honda GX160 | Chinese Petrol Engine |
| Power kw(hp) | 3.6(5.5) | 4.1(6.5) | 3.6(5.5) | 4.1(6.5) |
| Net Weight kg(lbs) | 67(148) | 80(176) | ||
| Frequency vpm | 5600 | 4500 | ||
| Centrifugal Force kN | 10 | 15 | ||
| Compaction Depth mm(in) | 200(7.9) | 300(11.8) | ||
| Travel Speed m/min(ft/min) | 21(69) | 15(49) | ||
| Efficiency m2/hr(ft2/hr) | 529(5694) | 414(4456) | ||
| Plate Size mm(in) | Φ420(16.5) | Φ460(18.1) | ||
| Package mm | 540*540*1100 | |||
| Model | CNP60R | CNP80R | ||
| Engine Type | Honda GX160 | Chinese Petrol Engine | Honda GX160 | Chinese Petrol Engine |
| Power kw(hp) | 3.6(5.5) | 4.1(6.5) | 3.6(5.5) | 4.1(6.5) |
| Net Weight kg(lbs) | 67(148) | 80(176) | ||
| Frequency vpm | 5600 | 4500 | ||
| Centrifugal Force kN | 10 | 15 | ||
| Compaction Depth mm(in) | 200(7.9) | 300(11.8) | ||
| Travel Speed m/min(ft/min) | 21(69) | 15(49) | ||
| Efficiency m2/hr(ft2/hr) | 529(5694) | 414(4456) | ||
| Plate Size mm(in) | Φ420(16.5) | Φ460(18.1) | ||
| Package mm | 540*540*1100 | |||
