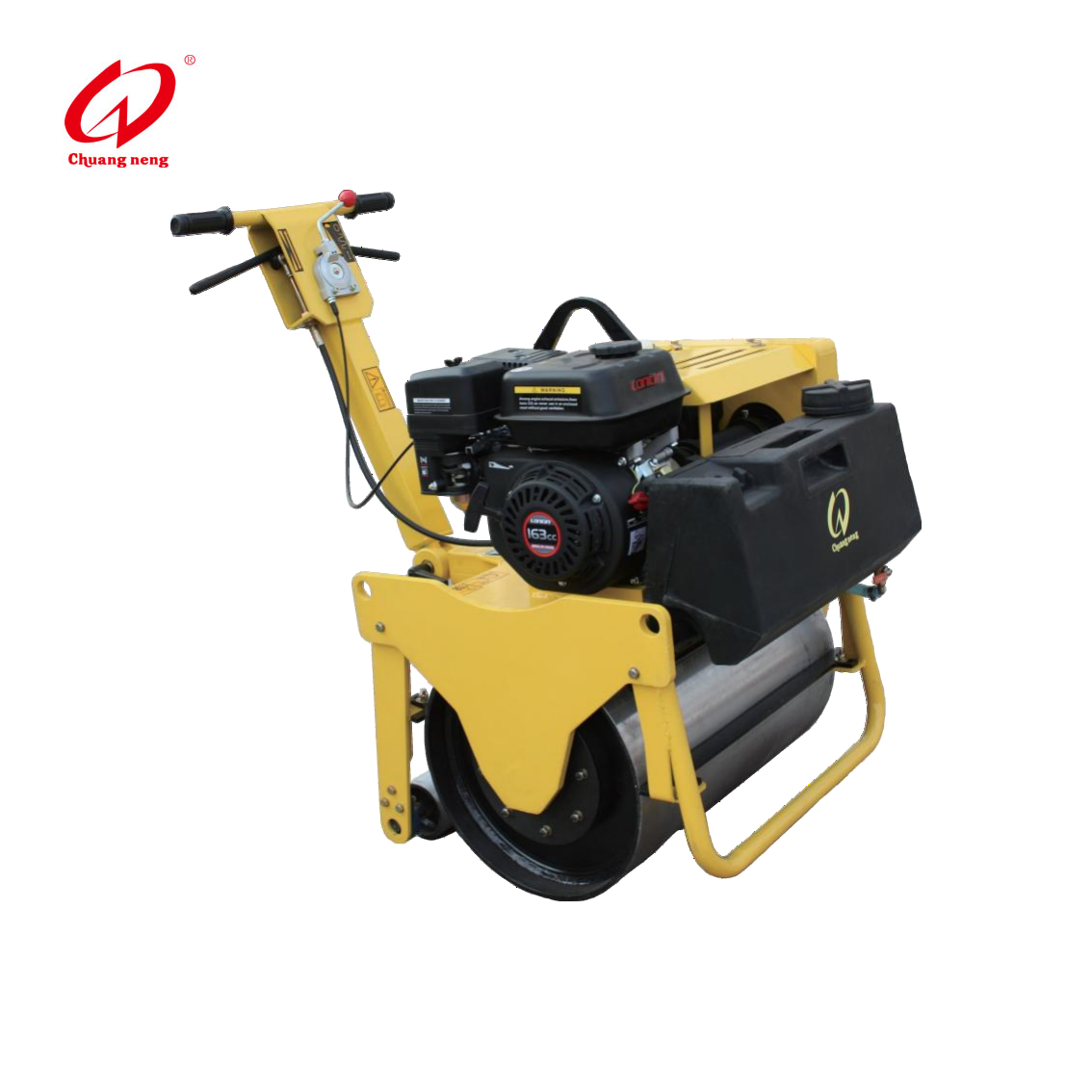

Model | CNYL641 | |
Engine Type | Honda GX160 | Chinese Petrol Engine |
Power kW(hp) | 3.6(5.5) | 4.1(6.5) |
Net Weight kg(lbs) | 266(586) | |
Starting Mode | Manual | |
Travel Speed m/hr | 0~3000 | |
Drive Type | Static Hydraulic Drive | |
Vibration Type | Mechanical | |
| Static Load N/cm | 40 | |
| Nominal Amplitude mm | 0.6 | |
| Vibration Frequency Hz | 72 | |
Centrifugal Force kN | 13.5 | |
| Water Tank Capacity L | 16 | |
Drum Size mm | Φ400*600 | |
Gradeability | 30º | |
Package mm | 860*820*1230 | |
Model | CNYL641 | |
Engine Type | Honda GX160 | Chinese Petrol Engine |
Power kW(hp) | 3.6(5.5) | 4.1(6.5) |
Net Weight kg(lbs) | 266(586) | |
Starting Mode | Manual | |
Travel Speed m/hr | 0~3000 | |
Drive Type | Static Hydraulic Drive | |
Vibration Type | Mechanical | |
| Static Load N/cm | 40 | |
| Nominal Amplitude mm | 0.6 | |
| Vibration Frequency Hz | 72 | |
Centrifugal Force kN | 13.5 | |
| Water Tank Capacity L | 16 | |
Drum Size mm | Φ400*600 | |
Gradeability | 30º | |
Package mm | 860*820*1230 | |
