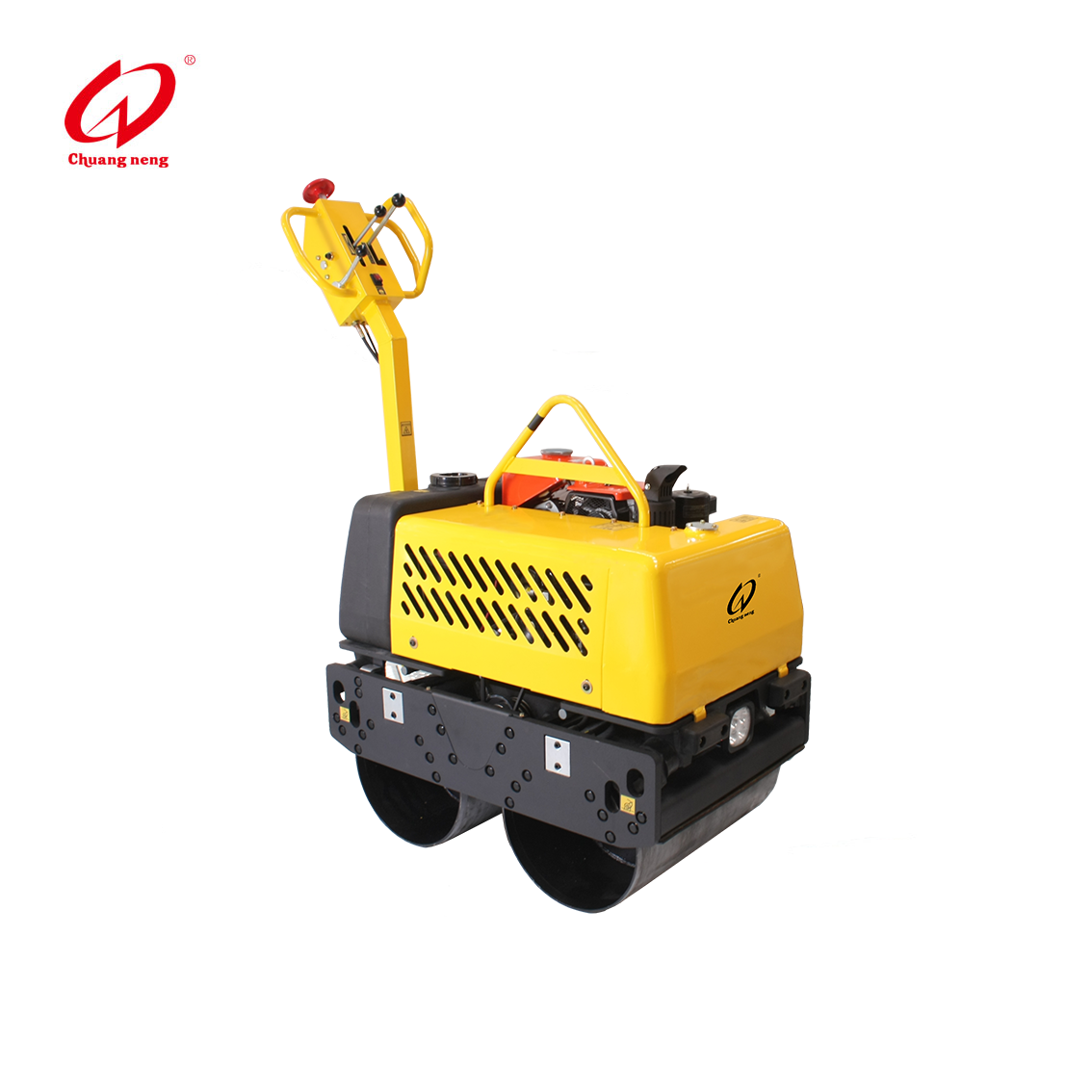

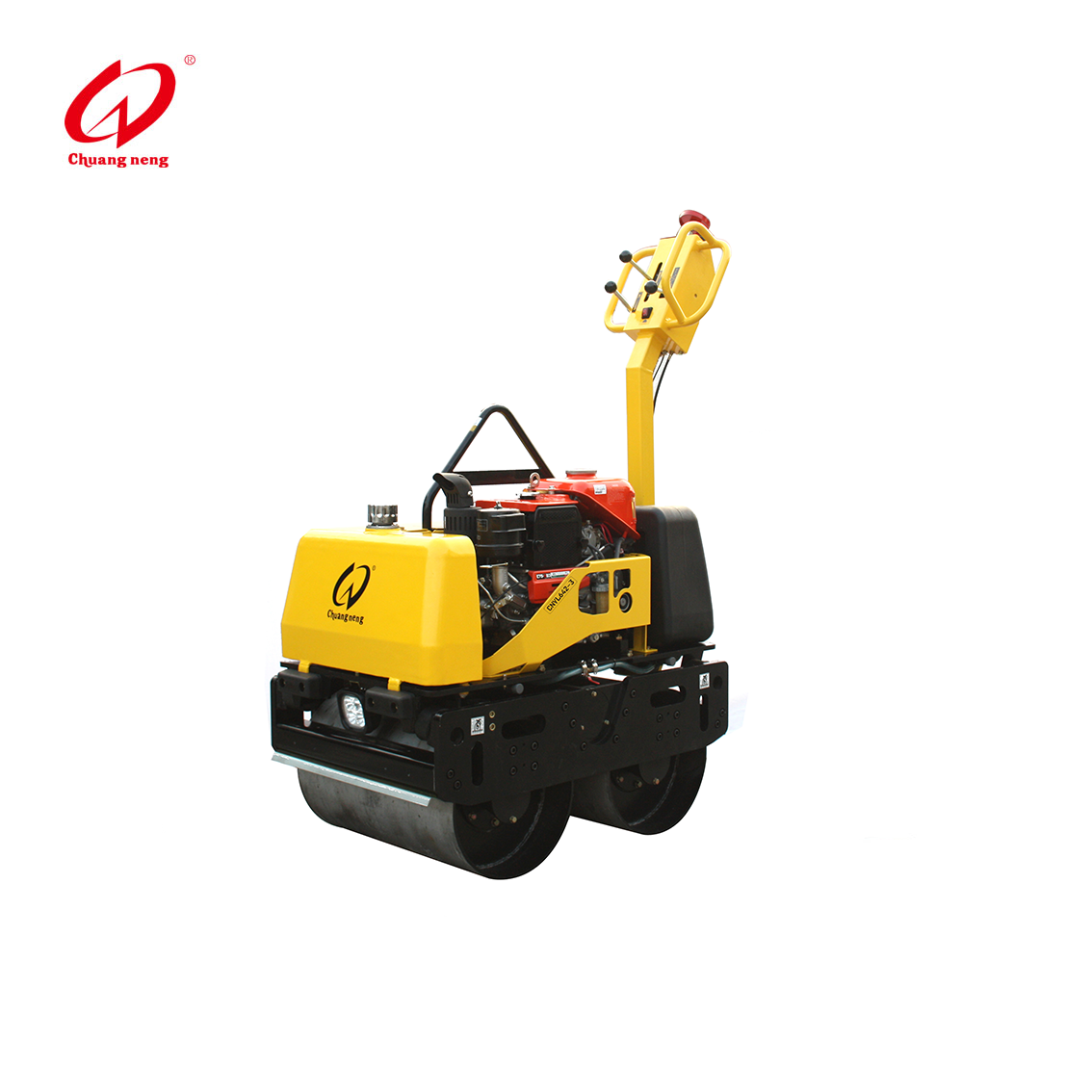

Model | CNYL642-3 | |
Engine Type | KUBOTA E75-NB3 | Chinese Diesel 90N-1 |
| Water-cooled,4-stroke diesel engine | ||
Power kW(hp) | 4.6(6.2) | 6.6(9.0) |
Net Weight kg(lbs) | 640(1410) | 670(1477) |
Starting Mode | Electric Starter | |
Travel Speed m/hr | 0~4000 | |
Drive Type | Hydraulic Drive | |
Vibration Type | Mechanical | |
Vibration Frequency Hz | 55 | |
Centrifugal Force kN | 20 | |
Water Tank Capacity L | 44 | |
Drum Size mm | Φ400*650*2 | |
Gradebility | 25° | |
| Hydraulic Oil L | 20 | |
Package mm | 1500*800*2110 | |
