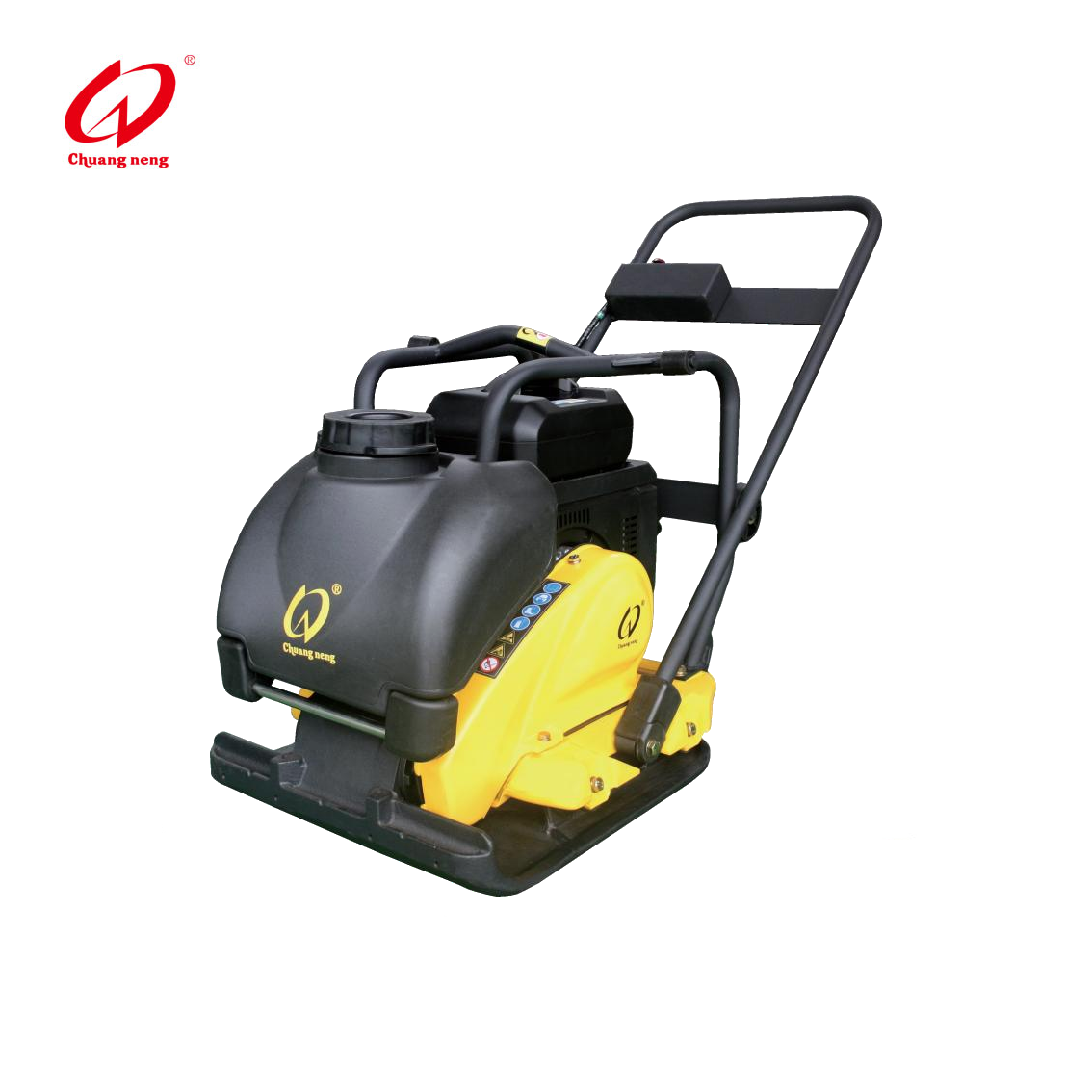

| Model | CNP15HE |
| Net Weight kg(lbs) | 110(203) |
| Frequency vpm | 5940 |
| Centrifugal Force kN | 13 |
| Compaction Depth mm(in) | 300(11.8) |
| Travel Speed m/min(ft/min) | 25(82) |
| Efficiency m2/hr(ft2/hr) | 750(8073) |
| Plate Size mm(in) | 530*500(20.9*19.7) |
| Package mm | 740*500*500 |
| Motor Type | Permanent magnet DC motor |
| Rated Performance kW | 1.6 |
| Rated Current A | 27 |
| Voltage V | 72 |
| Speed rpm | 3600 |
| Li-ion Battery Pack | DP72104Z |
| Type of Battery | Li-ion |
| Normal Voltage V | 72 |
| Rated Capacity | 10Ah,720Wh |
| Charing Time hr | 2 |
| Running Time Per Charge min | 30 |
| Net Weight kg(lbs) | 6.4(14) |
| Product Size mm | 233*268*150 |
| Package mm | 330*300*200 |
| Charger | CV7285Z |
| Input AC | 100~200V,10A |
| Frequency Hz | 50~60 |
| Output DC | 82.8V,8.5A |
| Net Weight kg(lbs) | 11(24) |
| Gross Weight kg(lbs) | 12.7(28) |
| Product Size mm | 270*270*355 |
| Package mm | 435*320*355 |
