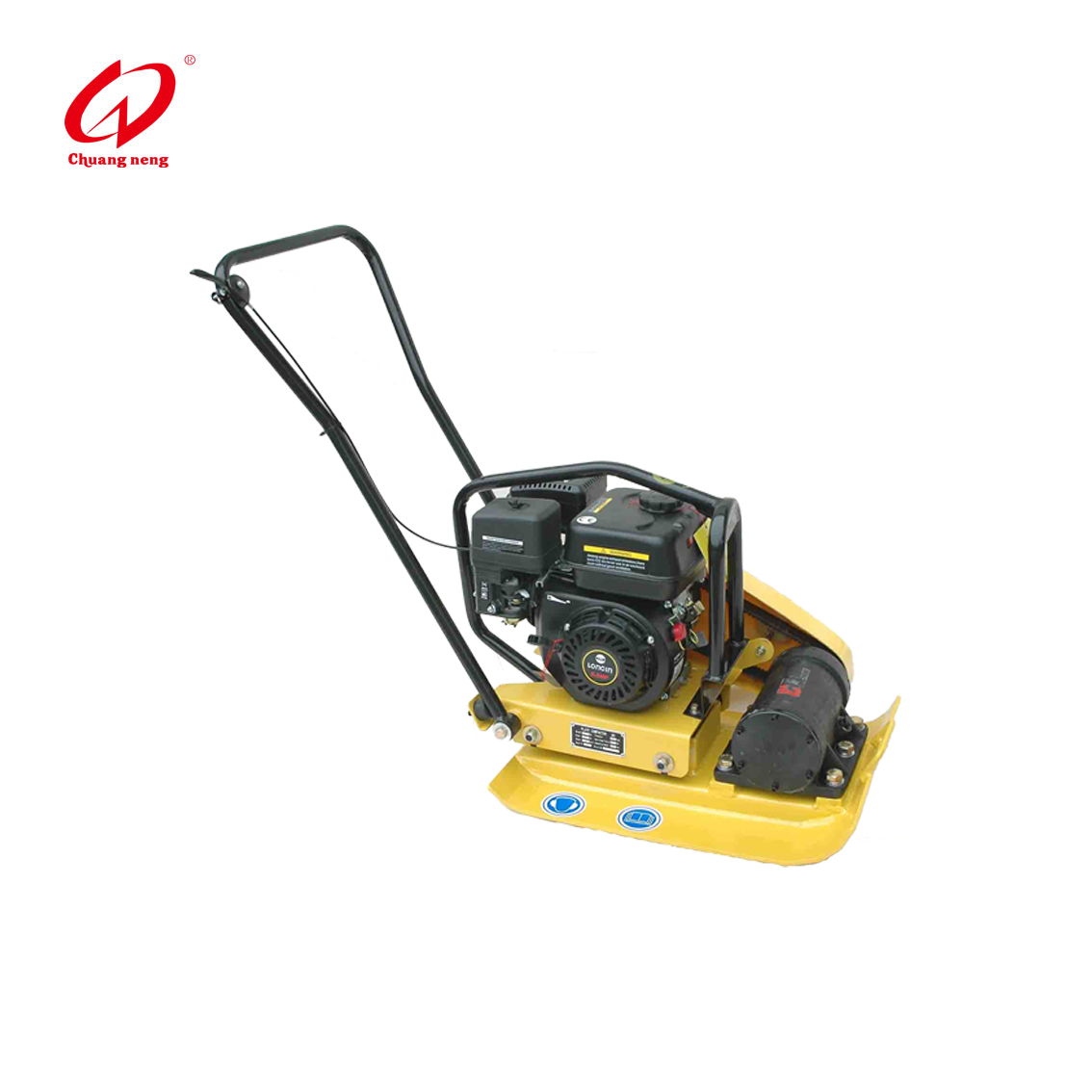

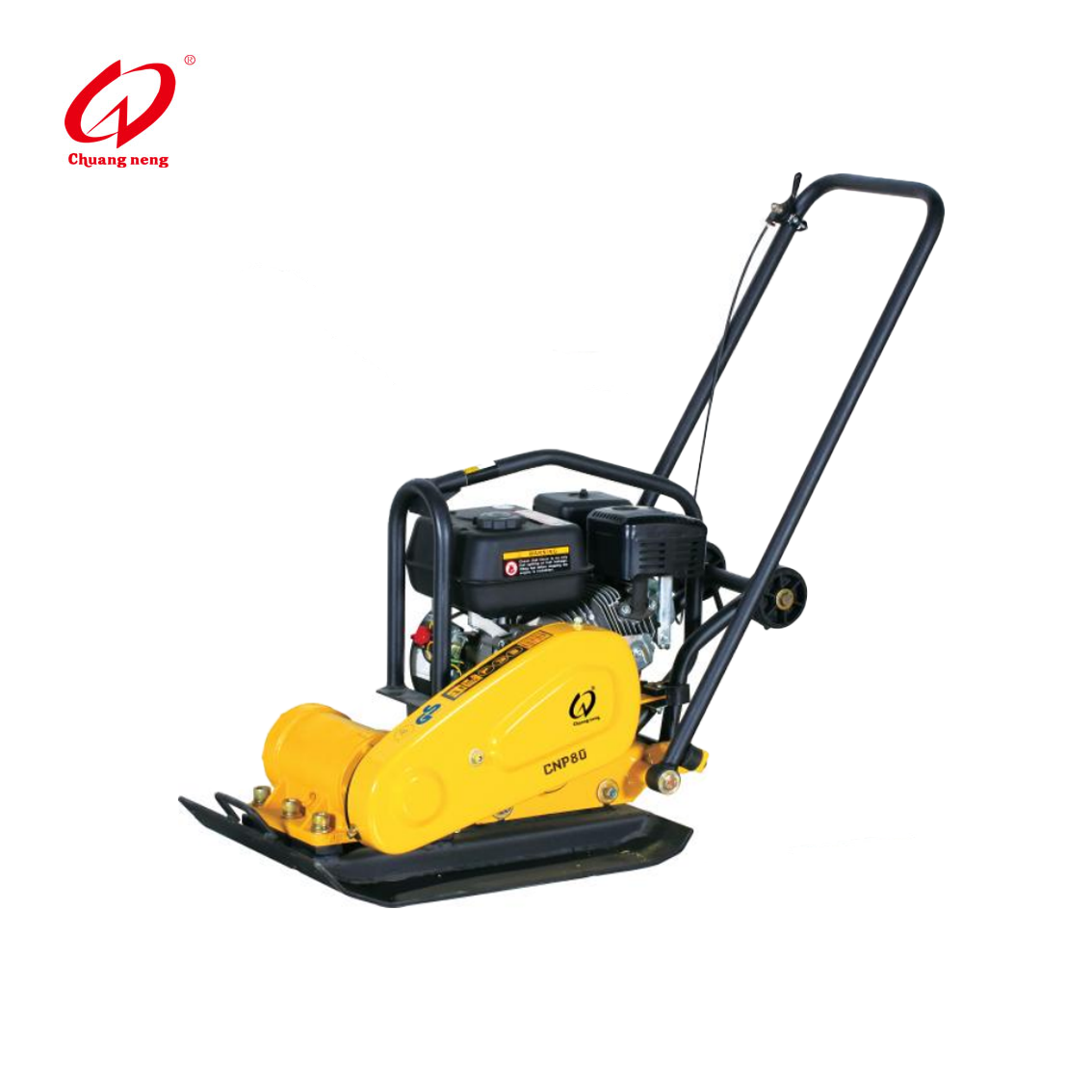

| Model | CNP80 | ||
| Engine Type | Honda GX160 | Chinese Petrol Engine | Chinese DIesel 173F |
| Power kw(hp) | 3.6(5.5) | 4.1(6.5) | 3.6(4.9) |
| Net Weight kg(lbs) | 79(174) | 79(174) | 89(196) |
| Frequency vpm(Hz) | 5080(85) | ||
| Centrifugal Force kN | 18 | ||
| Compaction Depth mm(in) | 300(12) | ||
| Travel Speed m/min(ft/min) | 23(75.5) | ||
| Efficiency m2/hr(ft2/hr) | 580(6243) | ||
| Plate Size mm(in) | 590*420(23.2*16.5) | ||
| Package mm | 800*460*580 | 800*460*720 | |
| Model | CNP80 | ||
| Engine Type | Honda GX160 | Chinese Petrol Engine | Chinese DIesel 173F |
| Power kw(hp) | 3.6(5.5) | 4.1(6.5) | 3.6(4.9) |
| Net Weight kg(lbs) | 79(174) | 79(174) | 89(196) |
| Frequency vpm(Hz) | 5080(85) | ||
| Centrifugal Force kN | 18 | ||
| Compaction Depth mm(in) | 300(12) | ||
| Travel Speed m/min(ft/min) | 23(75.5) | ||
| Efficiency m2/hr(ft2/hr) | 580(6243) | ||
| Plate Size mm(in) | 590*420(23.2*16.5) | ||
| Package mm | 800*460*580 | 800*460*720 | |
