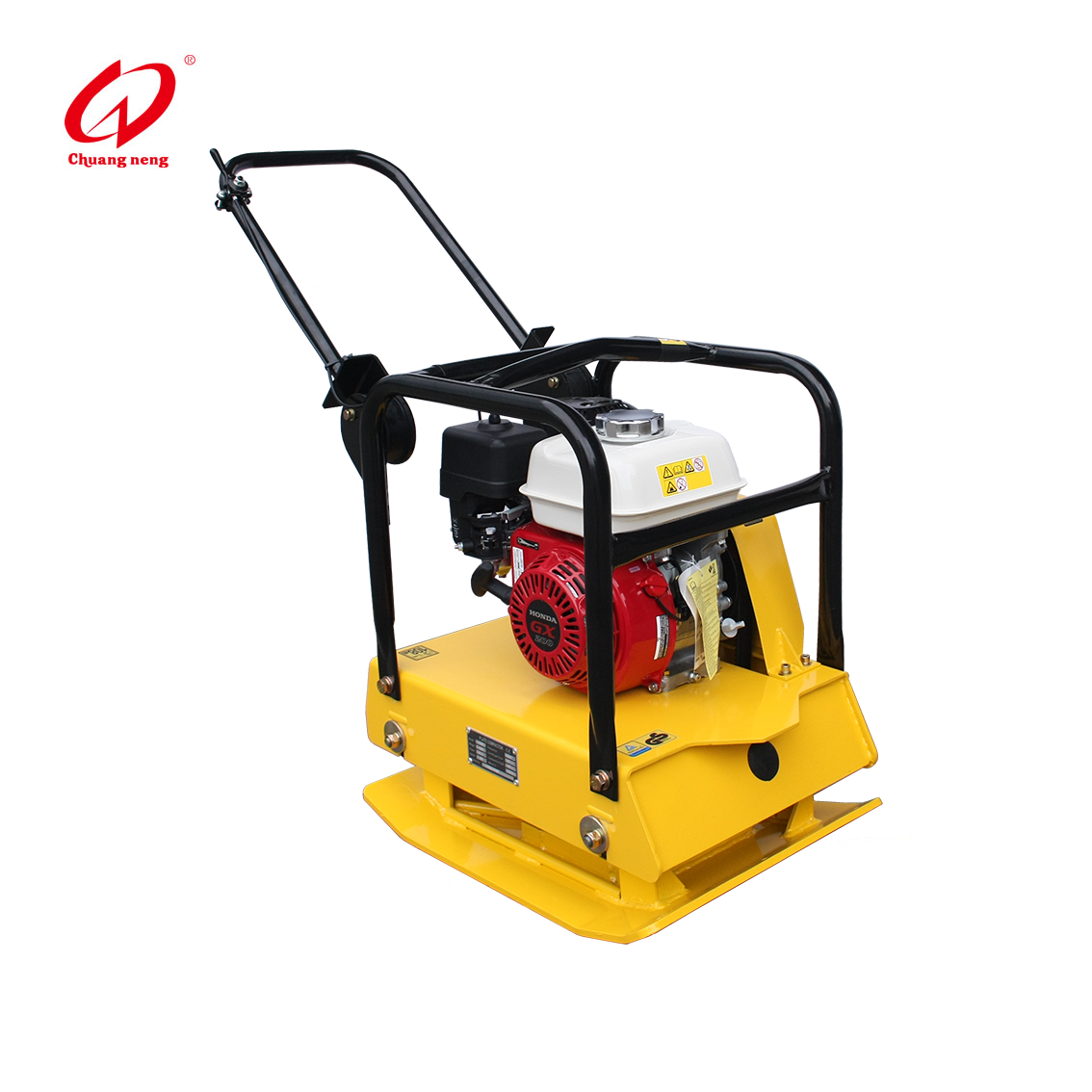

| Model | CNP140 | ||
| Engine Type | Honda GX160 | Chinese Petrol Engine | Chinese DIesel 173F |
| Power kw(hp) | 3.6(5.5) | 4.1(6.5) | 3.6(4.9) |
| Net Weight kg(lbs) | 100(220) | 100(220) | 110(242) |
| Frequency vpm(Hz) | 4750(79) | ||
| Centrifugal Force kN | 20 | ||
| Compaction Depth cm(in) | 40(15.8) | ||
| Travel Speed m/min(ft/min) | 21(68.9) | ||
| Efficiency m2/hr(ft2/hr) | 567(6103) | ||
| Plate Size mm(in) | 590*450(23.2*18) | ||
| Package mm | 680*485*700 | 680*485*740 | |
