Use the CN4820 as the power supply.

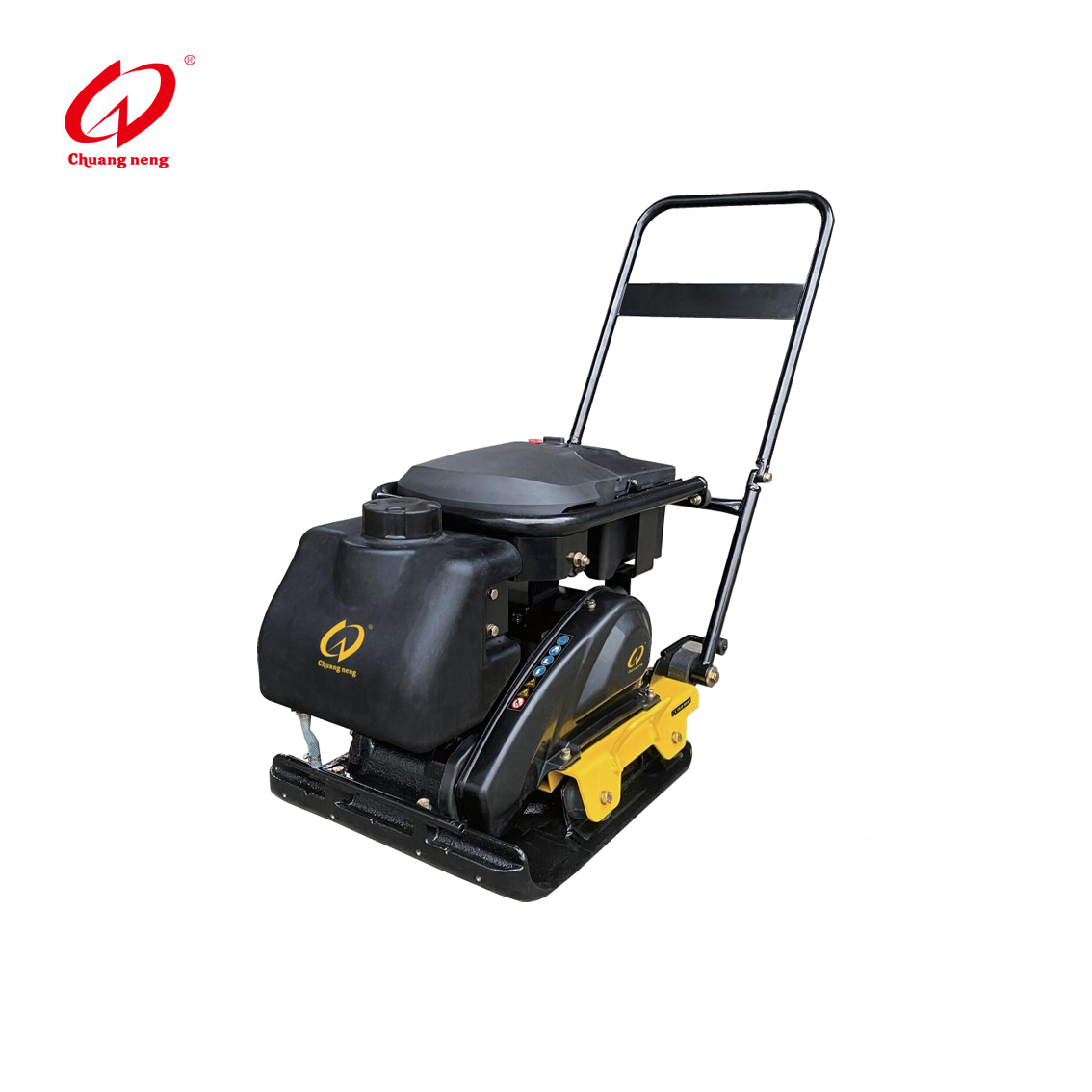

| Model | CNP100E |
| Net Weight kg(lbs) | 106(234) |
| Frequency vpm | 4950 |
| Centrifugal Force kN | 13 |
| Compaction Depth mm(in) | 300(11.8) |
| Travel Speed m/min(ft/min) | 20(65.5) |
| Efficiency m2/hr | 600(6458) |
| Plate Size cm | 530*500(20.9*19.7) |
| Working Size | 1120*500*990 |
| Package mm | 790*530*580 |
| Model Type | Permanent magnet DC motor |
| Rated Performance kW | 2.2 |
| Rated Current A | 58 |
| Voltage V | 48 |
| Speed rpm | 3000 |
Use the CN4820 as the power supply.
| Model | CNP100E |
| Net Weight kg(lbs) | 106(234) |
| Frequency vpm | 4950 |
| Centrifugal Force kN | 13 |
| Compaction Depth mm(in) | 300(11.8) |
| Travel Speed m/min(ft/min) | 20(65.5) |
| Efficiency m2/hr | 600(6458) |
| Plate Size cm | 530*500(20.9*19.7) |
| Working Size | 1120*500*990 |
| Package mm | 790*530*580 |
| Model Type | Permanent magnet DC motor |
| Rated Performance kW | 2.2 |
| Rated Current A | 58 |
| Voltage V | 48 |
| Speed rpm | 3000 |
