Use the CN4820 as the power supply.

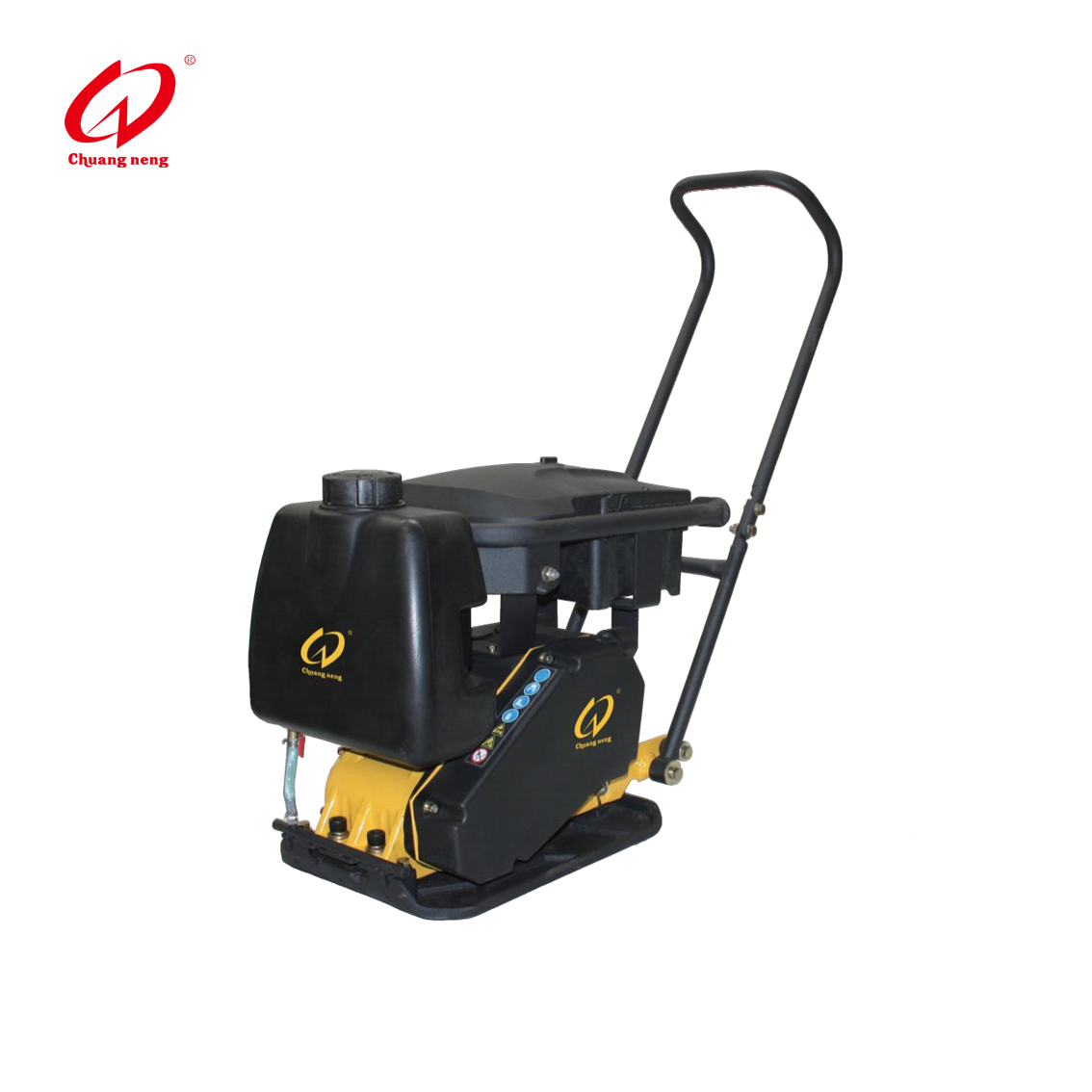

| Model | CNP80E |
| Net Weight kg(lbs) | 80(176) |
| Frequency vpm | 4980 |
| Centrifugal Force kN | 13 |
| Compaction Depth mm(in) | 300(11.8) |
| Travel Speed m/min(ft/min) | 25(82) |
| Efficiency m2/hr | 555(5974) |
| Plate Size cm | 530*370(20.9*14.6) |
| Working Size mm | 980*370*930 |
| Package mm | 730*390*590 |
| Model Type | Permanent magnet DC motor |
| Rated Performance kW | 2.2 |
| Rated Current A | 58 |
| Voltage V | 48 |
| Speed rpm | 3000 |
Use the CN4820 as the power supply.
| Model | CNP80E |
| Net Weight kg(lbs) | 80(176) |
| Frequency vpm | 4980 |
| Centrifugal Force kN | 13 |
| Compaction Depth mm(in) | 300(11.8) |
| Travel Speed m/min(ft/min) | 25(82) |
| Efficiency m2/hr | 555(5974) |
| Plate Size cm | 530*370(20.9*14.6) |
| Working Size mm | 980*370*930 |
| Package mm | 730*390*590 |
| Model Type | Permanent magnet DC motor |
| Rated Performance kW | 2.2 |
| Rated Current A | 58 |
| Voltage V | 48 |
| Speed rpm | 3000 |
