Use the CN4820 as the power supply.

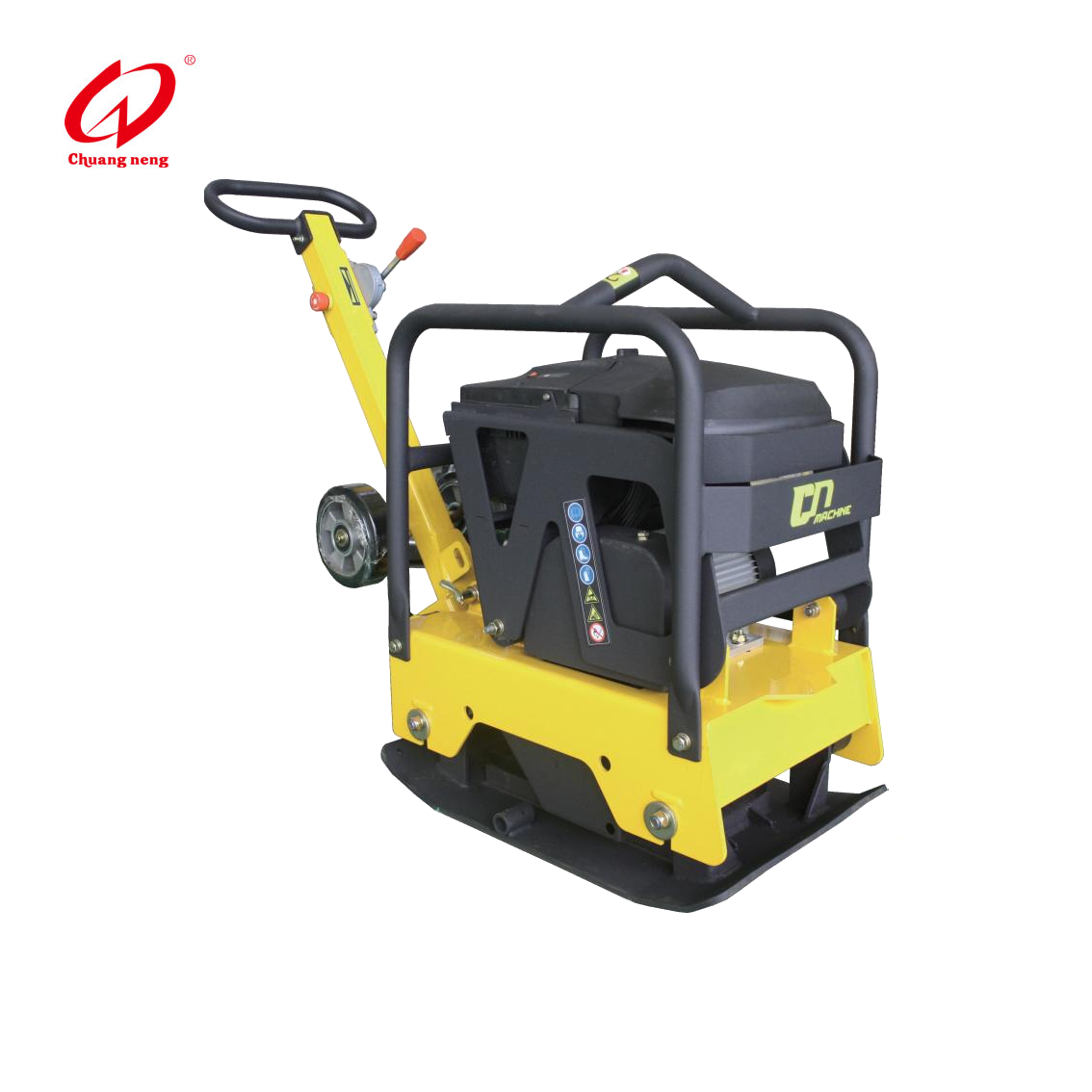

| Model | CNP30E |
| Net Weight kg(lbs) | 166(366) |
| Frequency vpm | 4265 |
| Centrifugal Force kN | 30.5 |
| Compaction Depth mm(in) | 500(19.7) |
| Travel Speed m/min(ft/min) | 15(49) |
| Efficiency m2/hr | 594(6394) |
| Plate Size mm | 705*450(27.8*17.7) |
| Working Size mm | 1200*450*940 |
| Package mm | 840*470*1000 with wheel 780*470*100 without wheel |
| Model Type | Permanent magnet DC motor |
| Rated Performance kW | 2.2 |
| Rated Current A | 58 |
| Voltage V | 48 |
| Speed rpm | 3400 |
Use the CN4820 as the power supply.
| Model | CNP30E |
| Net Weight kg(lbs) | 166(366) |
| Frequency vpm | 4265 |
| Centrifugal Force kN | 30.5 |
| Compaction Depth mm(in) | 500(19.7) |
| Travel Speed m/min(ft/min) | 15(49) |
| Efficiency m2/hr | 594(6394) |
| Plate Size mm | 705*450(27.8*17.7) |
| Working Size mm | 1200*450*940 |
| Package mm | 840*470*1000 with wheel 780*470*100 without wheel |
| Model Type | Permanent magnet DC motor |
| Rated Performance kW | 2.2 |
| Rated Current A | 58 |
| Voltage V | 48 |
| Speed rpm | 3400 |
