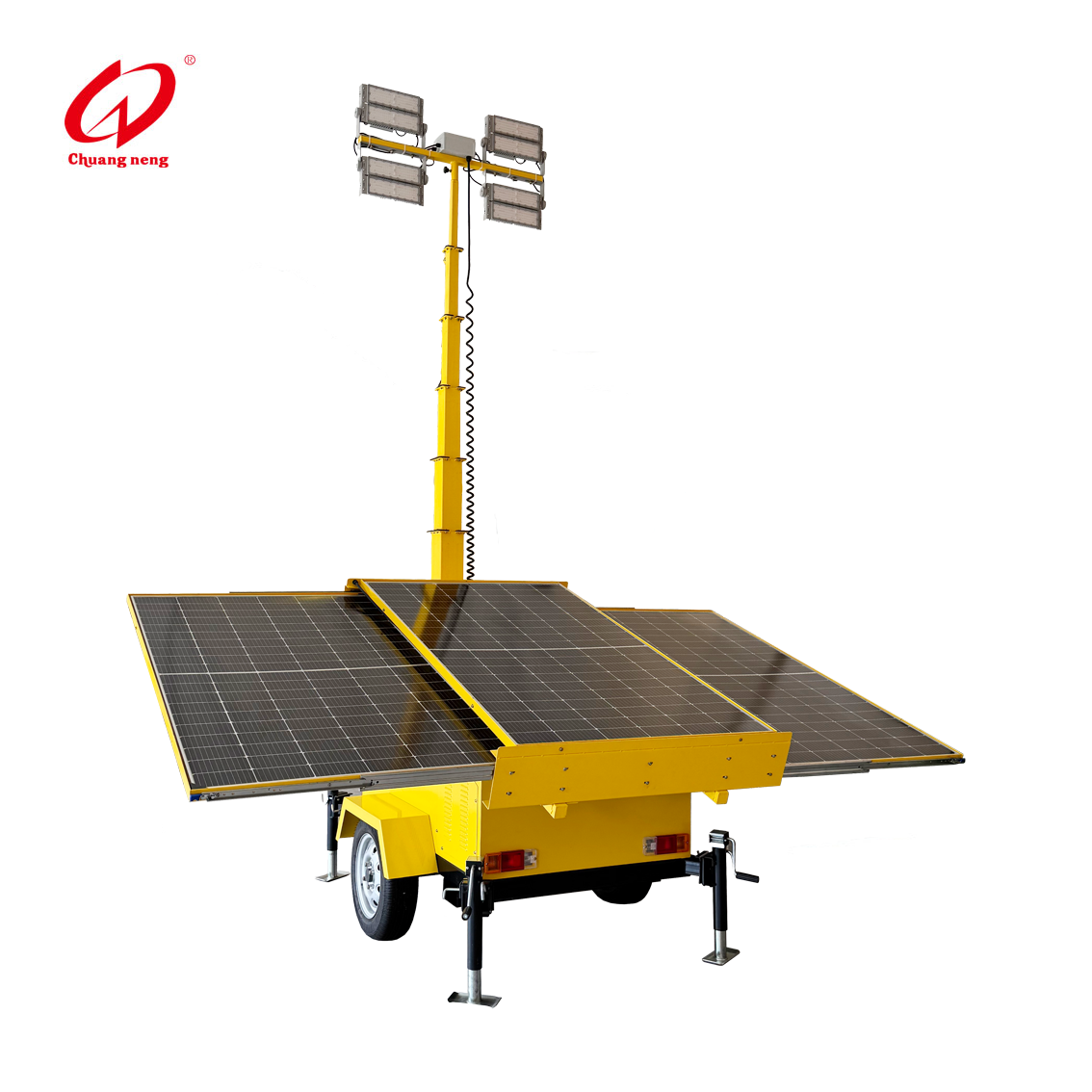

| Model | CNZM7000-S |
| Mast Operation | 7 sections mast |
| Evevating Height/Mode | 7m/Manual Winch 9m/Electric and Hydraulic |
| Moving Mode | Manual push/Trailer |
| Rotation | 360° |
| System Voltage | DC24V |
| Lamp Type | LED |
| Power*Lamp Number | 200W*4 |
| Luminous Flux | 4*24000Lm |
| Solar Panel | Monocrystalling Silicon |
| Rated Power | 3*450W |
| PV Controller | 60A PPT |
| Battery Type | Gel-battery |
| Battery | Colloiday Battery,6*200AH,DC12V |
| Battery Life | 1000cycles |
| Working Temperature | -20-50℃ |
| Class of Protection | IP65 |
| Continous Working Time | 15-17 hours |
| Charging Time(Solar) | ＜16-20 hours |
| Net Weight kg(lbs) | 1000(2205) |
