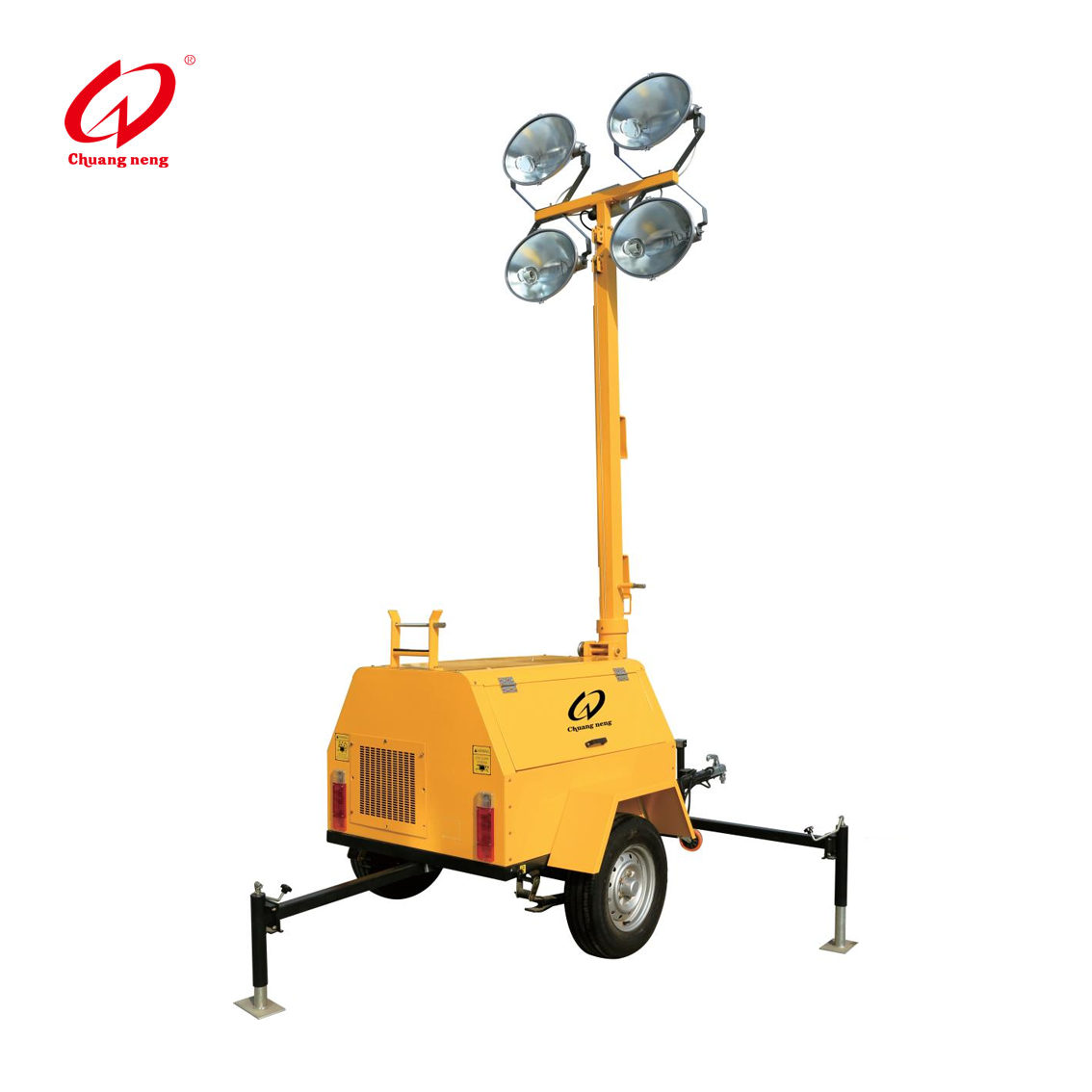

| Type | CNZM9000 | |
| Power X Lamp numbers | 1000W×4 | 400W*4 |
| Lamp type | Matel halide lamps | LED |
| Max. Coverage Area m² | 4500-5500 | |
| Mast Operation | 3 sections mast | |
| Elevating Height m | 9 | |
| Elevating Mode | Manual winch | |
| Anti-slope | ＜5° | |
| MastRotation Angle | 360° | |
| Anti-wind Level | ＜6° | |
| Tyre Size mm | Φ350 | |
| Max. Towing Speed km/h | 60 | |
| Generator parameter | ||
| Engine Type | Water-cooled,4-stroke,3-cylinders,diesel engine | |
| Voltage /Frquency | 220V/50Hz,110/60 | |
| Rated Output Power kW | 10.0 | |
| Engine Speed rpm | 1500/1800 | |
| Fuel Tank Volume L | 108 | |
| Continuous Working Time hr | 28 | |
| Net weight kg(lbs) | 945(2083) | |
| Package | Main Machine mm 1840*1680*1600 | |
| Mast mm 3390*490*380 | ||
| Lamps mm 1160*1160*300 | ||
| Type | CNZM9000 | |
| Power X Lamp numbers | 1000W×4 | 400W*4 |
| Lamp type | Matel halide lamps | LED |
| Max. Coverage Area m² | 4500-5500 | |
| Mast Operation | 3 sections mast | |
| Elevating Height m | 9 | |
| Elevating Mode | Manual winch | |
| Anti-slope | ＜5° | |
| MastRotation Angle | 360° | |
| Anti-wind Level | ＜6° | |
| Tyre Size mm | Φ350 | |
| Max. Towing Speed km/h | 60 | |
| Generator parameter | ||
| Engine Type | Water-cooled,4-stroke,3-cylinders,diesel engine | |
| Voltage /Frquency | 220V/50Hz,110/60 | |
| Rated Output Power kW | 10.0 | |
| Engine Speed rpm | 1500/1800 | |
| Fuel Tank Volume L | 108 | |
| Continuous Working Time hr | 28 | |
| Net weight kg(lbs) | 945(2083) | |
| Package | Main Machine mm 1840*1680*1600 | |
| Mast mm 3390*490*380 | ||
| Lamps mm 1160*1160*300 | ||
