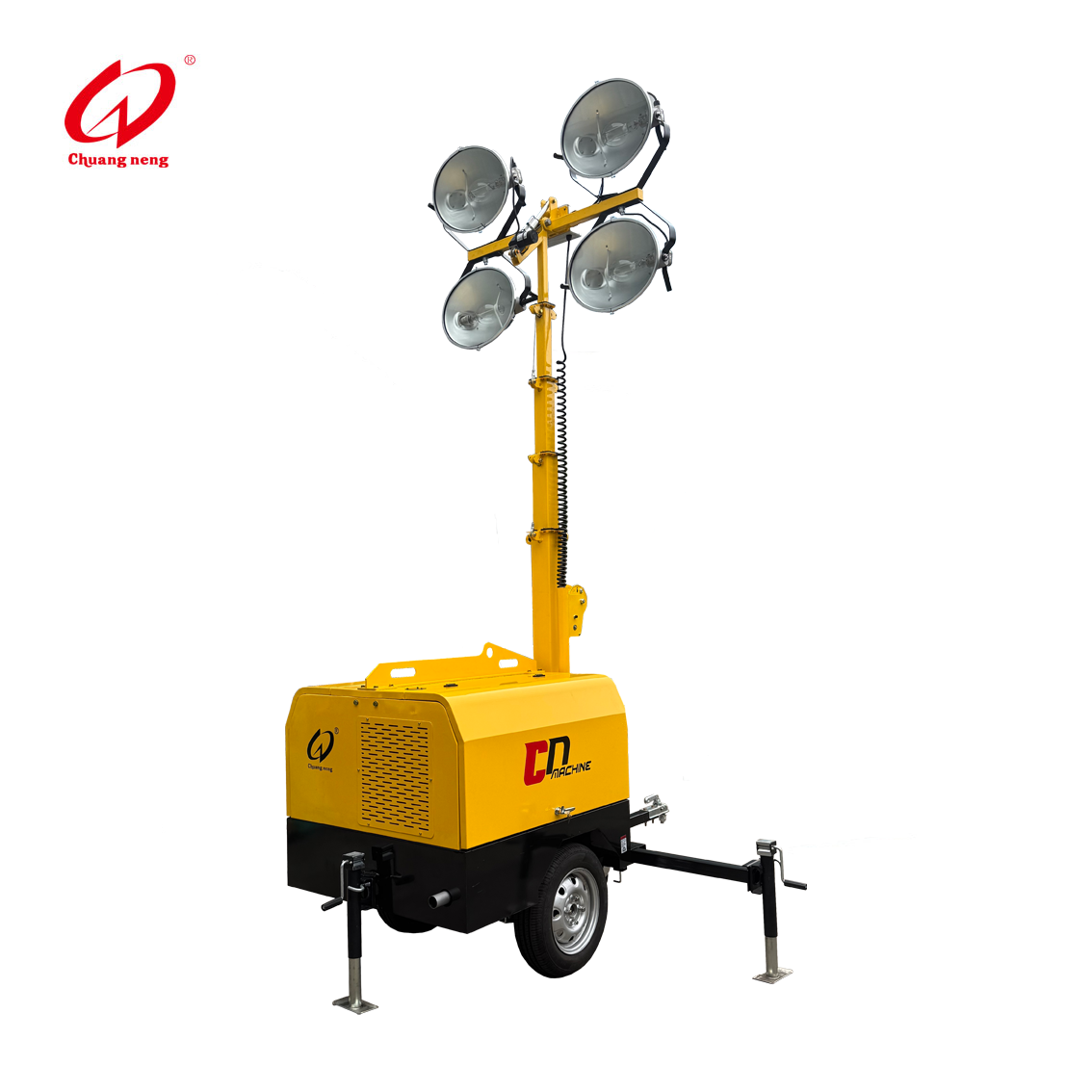

| Type | CNZM8000 | |
| Power * Lamp numbers | 1000W×4 | 400W*4 |
| Lamp type | Matel halide lamps | LED |
| Max. Coverage Area m² | 4500-5000 | |
| Mast Operation | 5 sections mast | |
| Elevating Height m | 8 | |
| Elevating Mode | Manual winch | |
| Anti-slop | ＜5° | |
| Anti-wind Level | ＜6° | |
| Tyre Size mm | Φ550 | |
| Max. Towing Speed km/h | 60 | |
| Generator parameter | ||
| Engine Type | KUBOTA D1105 Water-cooled diesel engine,4 stroke,3 cylinder | |
| Voltage /Frquency | 380V/50Hz,three phase | 220V/60Hz,three phase |
| Rated Output Power kW | 10.0 | |
| Engine Speed rpm | 1800 | |
| Fuel tank Volume L | 120 | |
| Continuous Working Time hr | 30 | |
| Net weight kg(lbs) | 800(1764) | |
