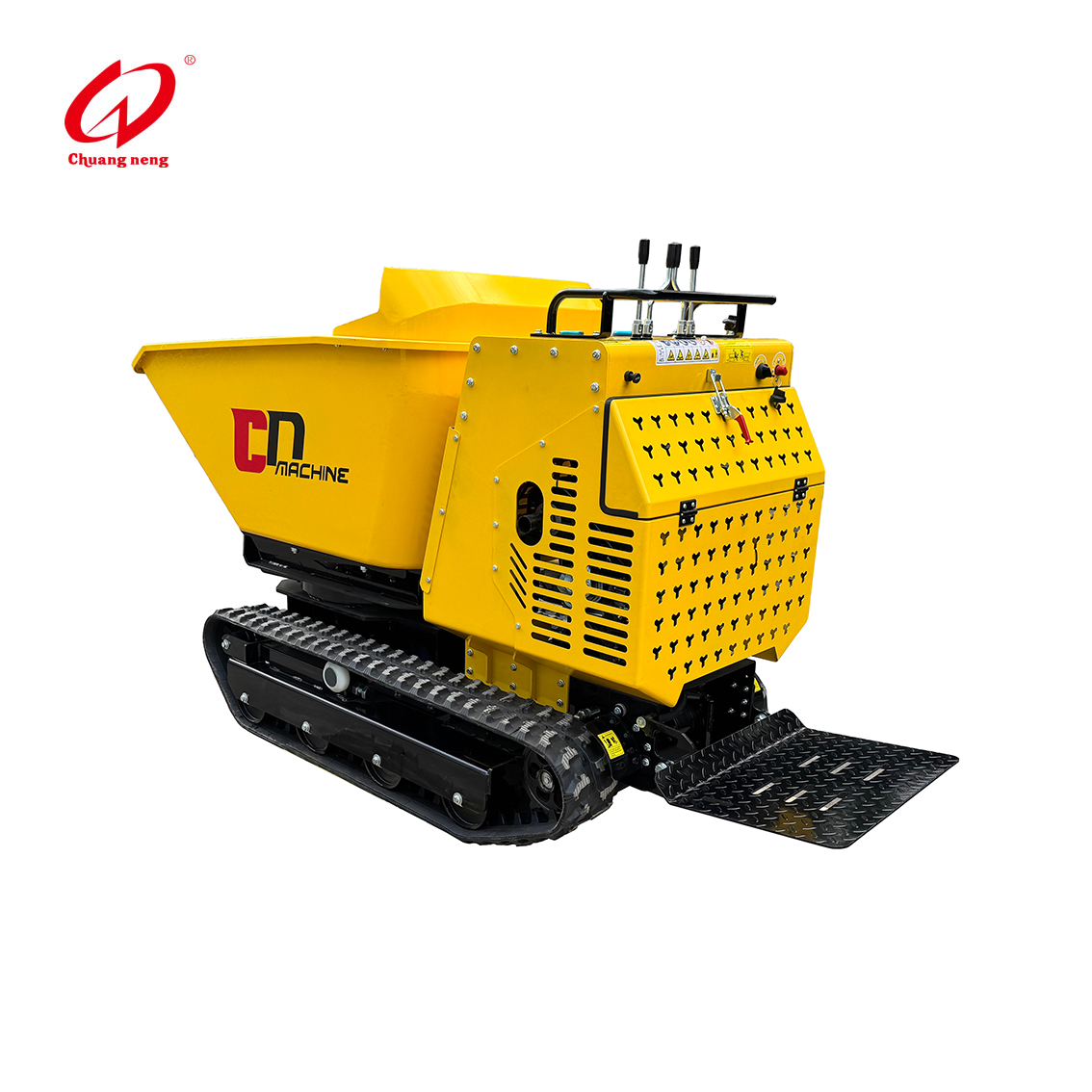

CN-1200
CN-1200 CN-1200

loading

CN-1200

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket

PDF Export
ModelCN-1200
Engine Type/Power kW(hp)Briggs & Stratton XR2100/10(13.5)
Honda GX390/8.7(13.0)
Changchai 192F Diesel/7.5(10.0)
Start ModeElectric Start
Net Weight kg(lbs)850(1875)-870(1919)
Max. Loading Capacity kg(lbs)1200(2647)
Overall Size(pedal not included) mm2060*900*1400
Overall Size(pedal included) mm2470*900*1400
Hopper Size mm1400*800*600
Hopper Capacity dm³594
Tipping SystemHydraulic Tipper
Tilting Angle90°
Clearance After Tipping hopper mm400
Chassis width mm850
Max. Rotation Angle180°
Rotation ModeHydraulic Rotation
Tipping Interval mm320
Track Width mm180
Track Grounding Length1000
Chassis Ground Clearance mm140
Walking Speed km/h5
Climbing Abillty25°
Hydraulic Oil model/Capacity46# Anti-wear Hydraulic Oil / 13L
Package mm2000*960*2560


Rotating dump truck

RELATED PRODUCTS

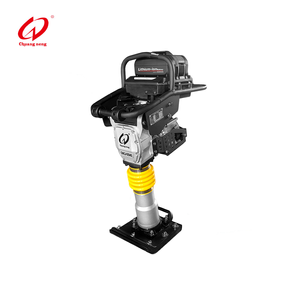

CNCJ-55HE
CNCJ-55HE

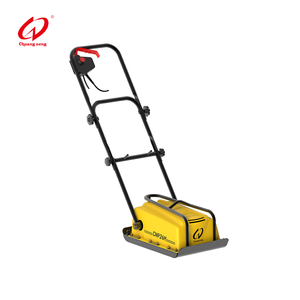

CNP26M
