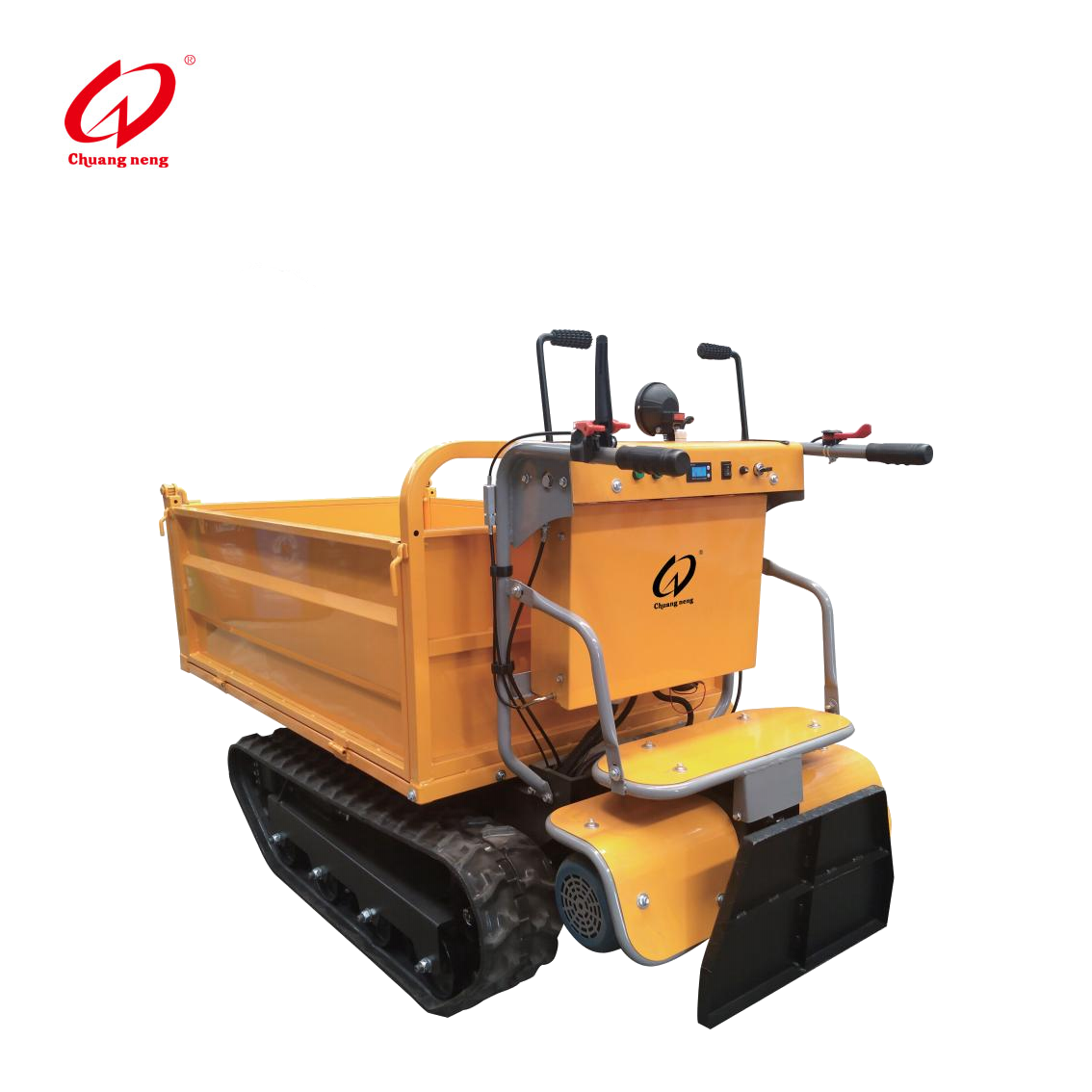

| Model | CNTC600 |
| Max.Loading Capacity kg(lbs) | 600(1323) |
| Suggested Loading Capacity kg(lbs) | 420(926) |
| Net Weight kg(ibs) | 422(474) |
| Cargo Compartement Flipping Method | Electro-hydraulic filp |
| Shifting Type | Manual |
| Forward/Reverse Switching Type | Motor switch |
| Gearbox Gear Shift | 2 gear shift |
| Brake Type | Bilateral friction brake |
| Max. Gradeability(Empty Load) | 25° |
| Max. Gradeability(Full Load) | 20° |
| Motor Type | Brushless DC motor |
| Rated Power W | 1500 |
| Motor Voltage V | 60 |
| Battery Capacity Ah | 46.8 |
| Battery Type | Maintenance free lead-acid cell |
| Charging Type | External Charging(220V/500W) |
| Battery Life Per Charge hr | 2.5 |
| Overall Size mm | 2240*915*450 |
| Bucket Size mm | 1350*850*450 |
| Package mm | 2120*970*815 |
